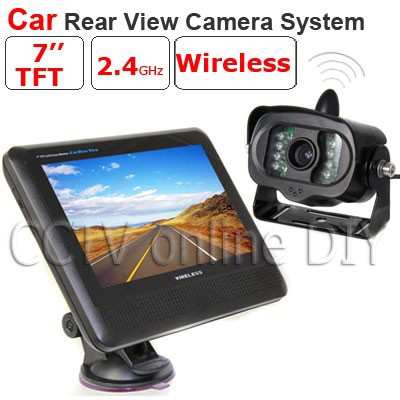

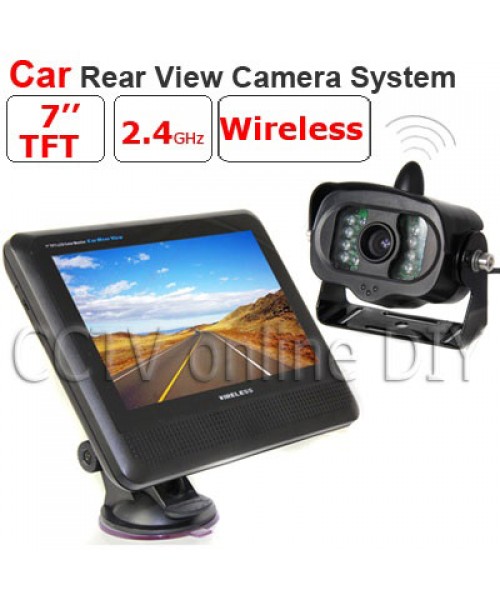

2.4GHz 7" inch TFT LCD Monitor Wireless Car Rear View system With a Weatherproof 15LEDs IR Night Vision Parking Reversing Camera


Be the first to review this product

Availability: In stock

Price :



This is a complete commercial grade 7 inch LCD Wireless COLOR rear view camera system that provides high quality video necessary for safe backing of virtually any type of vehicle, including recreational vehicles, trucks, vans, trailers, etc. You will not find a higher quality COLOR rear view camera system offered anywhere at this incredibly low price.

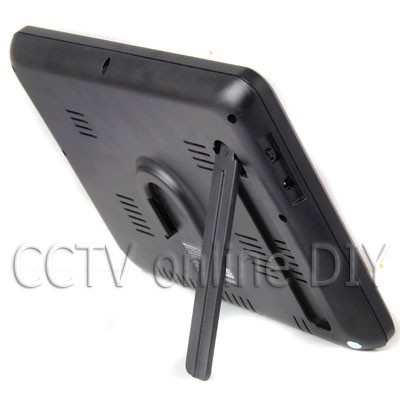

Receiver Feature:

  • Screen type:7inches TFT LCD
  • Resolution: 480 x 230 RGB
  • Brightness: 300cd \ square meter
  • Video system: NTSC/PAL
  • A/V Output
  • Operating Temperature: 0~50 degree
  • power suppply: 12V~24V DC

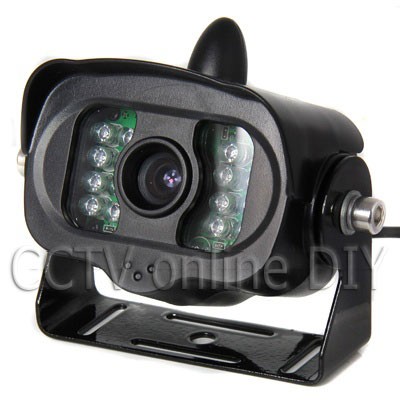

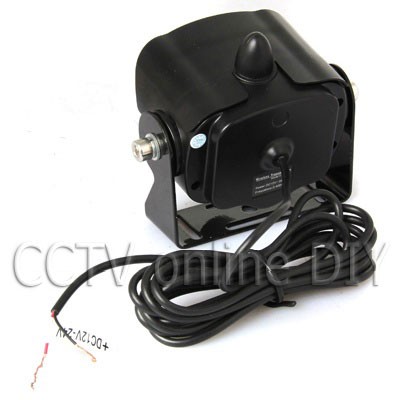

Camera Feature:

  • Frequency: 2.4GHz
  • Modulation Mode: FM
  • Built-in microphone for audio monitoring
  • 10m Night Vision Range
  • Weather-proof camera
  • 1/4" CMOS Image sensor Horizontal Definition 380TV Line
  • Unobstructed Effective Range: up to 100 meters
  • Operating Temperature: 0~50 degree
  • Power Supply: 12V~24V DC











  • Transmission Frequency: ISM 22, 400Hz~2485Hz
  • Modulation Mode:FM
  • Antenna Type: Camera: Omni: Reciever: Directional
  • Min.100m transmission distance without blocks
  • Antenna Port: :50ohm SMA
  • Receiving Sensitivity ≤-85dBm
  • Video Output Level: 1Vp- p@75ohm
  • Audio Output Level: 1Vp- p@600ohm
  • Operating Temperature: -10 degree~+50 degree/+14~+122F
  • Storage Temperature: -20 degree~+60 degree/-4~+140F
  • Operating Humidity: 85%RH
  • Screen Size: 7.0 inch
  • Power Supply: DC12V 1.5A

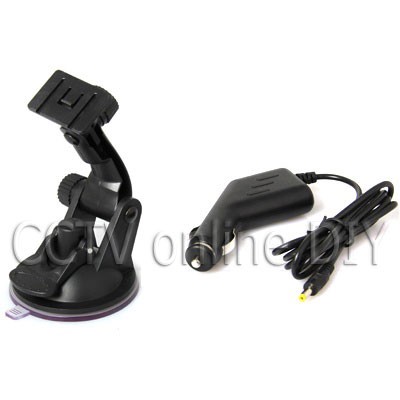

Item include:

  • 1 x 7inch rearview TFT-LCD monitor
  • 1 x Wireless Camera
  • 1 x Adapter
  • 1 x Mount Screws
  • 1 x Manual
