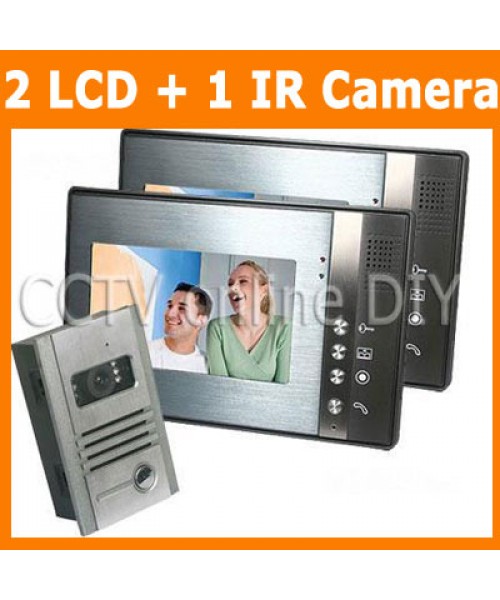

2pcs 7 inch Color Monitor 1pcs IR Camera Video Doorphone Intercom System

Introduction:


This is a powerful Intercom Bell, the out door unit is waterproofed, anti-oxygenationed and long grinded treatment for aluminium-alloy panel. That is No radiation, low power consume and 7 inch TFT high definition colour picture. And it is multi-fuctional , With functions as monitor, call, door-key, non-lift answer, no disturber, indoor call.



Specification:



Outdoor Unit

Power: No Power Need
Camera: CMOS 300,000pixels
Lamp-house: 6 LED lamp
Power Consumption: Standby 0.1W Open lock 12W
Available Distance: 80m(4 x 0.65 MM2)
Visual Angle: 62 degree/92 degree
Working Temperature: -10 degree C to + 50 degree C


Indoor Unit

Power: input: AC 100-240V 50/60Hz
output: DC 15V/2A
Displayer: 7 inch 480 x 234
Available Area: 154.08 x 86.58
Power Consumption: Standby 0.5W Working 8W
Keep Talking: 120s +/- 10%
Keep Monitoring: 60s +/- 10%
Working Temperature: 10 degree C to + 50 degree C

Features:

The products obvious luxury style and leads the tideway of colour visual intercom bell with thin designed for aluminium-alloy panel of indoor unit.
Waterproof, anti-oxygenation and long grinded treatment for aluminium-alloy panel of outdoor unit.
No radiation, low power consume and 7 inch TFT high definition colour picture.
With functions as monitor, call, door-key, non-lift answer, no disturber, indoor call.
Adjustable for ring volume, picture brightness, chroma and call.
Accompany with power switcher and terminal unit, user can install by own.
Door phone system with this monitor two or above two can support indoor call function.


Item Includes:
2 x Indoor unit
1 x Outdoor unit
2 x 15V/2A power supply
1 x Users manual
1 x Bag of Screw package
2 x 5M Cable
