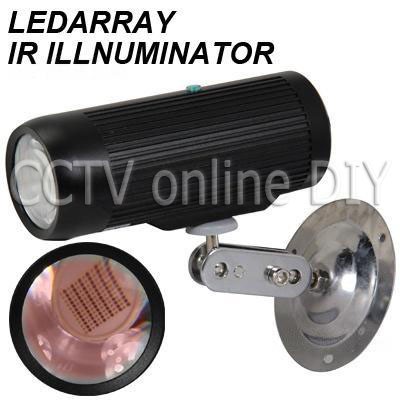

3300mw 940nm Wavelength Invisible IR Array Illuminator Lighting for Security CCTV Camera

SKU:COD-AIR06

Be the first to review this product

Availability: In stock

Price :
$77.00
USD

* Required Fields

$77.00

Details

CCTV Surveillance 3300mw 940nm Invisible Day Night IR LED Array Illuminator Lighting, Auxiliary light camera, infrared distance, wide angle, light uniformity, Veneer chips installed directly distributed to the outer shell of heat, cooling effect, General in Indoor and outdoor.


  • Small Volume:
    Array infrared light is highly integrated LED; At the same brightness index under size is much smaller than other infrared night vision products

  • Performance Long Life
    Array infrared lamp life of 50,000 h ( effective life of 10,000 h) than the Diode LED life of 6,000 h ( effective life of 1,200 h ) 9 times higher

  • Light Uniformity
    Array of infrared light emitter 180 emitting surface , the power angle adjustment of the infrared light emitting angle of infrared light through a special optical design for the 10 to 120 degrees , even in the monitor screen , to solve ordinary LED infrared light " flashlight effect "

  • High Efficiency Optical Conversion
    Array of infrared LED electro-optical conversion efficiency of 35%, Diode LED electro-optical conversion efficiency of 10%

Features:

  • High Infrared brightness:
    A array chip output 1,800 mW~ 4,200 mW, the brightness is about 100 times of the Diode IR LED ( 5~ 15mW )
  • Auxiliary light camera, infrared distance, wide angle
  • Array LED chip packaging technology, stable performance, high power infrared output .
  • Array points using infrared array chip, light uniformity .
  • Veneer chips installed directly distributed to the outer shell of heat, cooling effect .
  • Excellent optical design, infrared switch design .
  • General in Indoor and outdoor, degree of protection IP-66


Specification:

  • Figure: Columnar
  • Distance: 80M/ 30M/ 20M (option)
  • Power source: DC12V/2A
  • Power consumption: 7.2W
  • IR output: 3300mW
  • Half intensity beam angle: 30 degree/ 45 degree/ 60 degree (option)
  • IR wavelength: 940nm (Invisible)
  • Attention: The Camera Must Discover Invisible 940nm IR LED Array





Angle (Degree) Distance (M) Lens
90 10-15 3.6mm; 4mm
60 20 6mm
45 30 8mm
20-30 40 12mm
15-22 80-100 25mm; 50mm

Item include :

1 x CCTV Surveillance 3300mw 940nm Day Night IR LED Array Illuminator Lighting
