3800mw 850nm Wavelength IR Array Illuminator Lighting 10-70 Degree Adjustable for Security CCTV Camera

SKU:COD-AIR09

Be the first to review this product

Availability: In stock

Price :
$77.00
USD

Details

The body shell design of the new high thrmal conductivity aluminum pribate mode, anodized surface, corrosion- resistant beautiful outlook, adopt highly integrated LED array chip, disseminate heat design, long life span ,easy inatallation,adjustable focus 10-70 degree.


  • Small Volume:
    Array infrared light is highly integrated LED; At the same brightness index under size is much smaller than other infrared night vision products

  • Performance Long Life
    Array infrared lamp life of 50,000 h ( effective life of 10,000 h) than the Diode LED life of 6,000 h ( effective life of 1,200 h ) 9 times higher

  • Light Uniformity
    Array of infrared light emitter 180 emitting surface , the power angle adjustment of the infrared light emitting angle of infrared light through a special optical design for the 10 to 120 degrees , even in the monitor screen , to solve ordinary LED infrared light " flashlight effect "

  • High Efficiency Optical Conversion
    Array of infrared LED electro-optical conversion efficiency of 35%, Diode LED electro-optical conversion efficiency of 10%

Features:

  • High Infrared brightness:
    A array chip output 1,800 mW~ 4,200 mW, the brightness is about 100 times of the Diode IR LED ( 5~ 15mW )
  • Auxiliary light camera, infrared distance, wide angle
  • Array LED chip packaging technology, stable performance, high power infrared output .
  • Array points using infrared array chip, light uniformity .
  • Veneer chips installed directly distributed to the outer shell of heat, cooling effect .
  • Excellent optical design, infrared switch design .
  • General in Indoor and outdoor, degree of protection IP-66


Specification:

Model COD-AIR09
IR output 3800mW

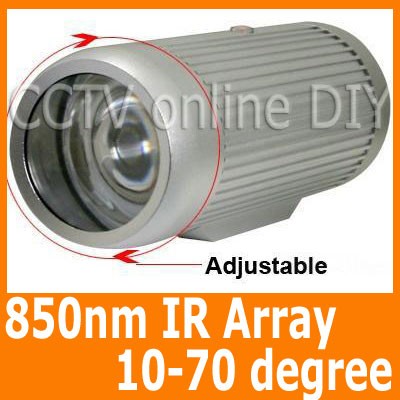

IR light angle 10-70 degree
IR wavelength 850nm
IR distance 15-90m
Power supply 12V 2A
Power 10w
Life 50000 hours
Work temperature -40 degree-60degree

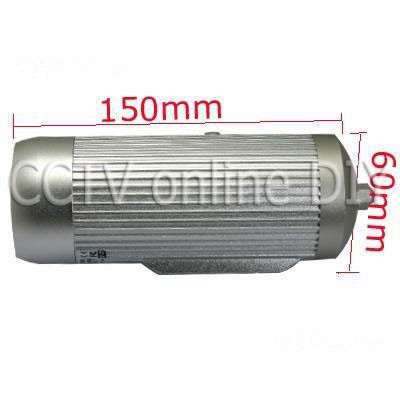

Size 55 x 155mm 170x 90x80
Weight 450g
Protection level IP-66





Angle Lens Distance
10° 35mm 90M
15° 25mm 70M
20° 16mm 50M
30° 12mm 40M
45° 8mm 30M
60° 6mm 20M
70° 4mm/3.6mm 15M

Item include :

1 x CCTV Surveillance 3800mw 850nm 15-90m IR LED Array Illuminator Lighting for CCTV Camera
