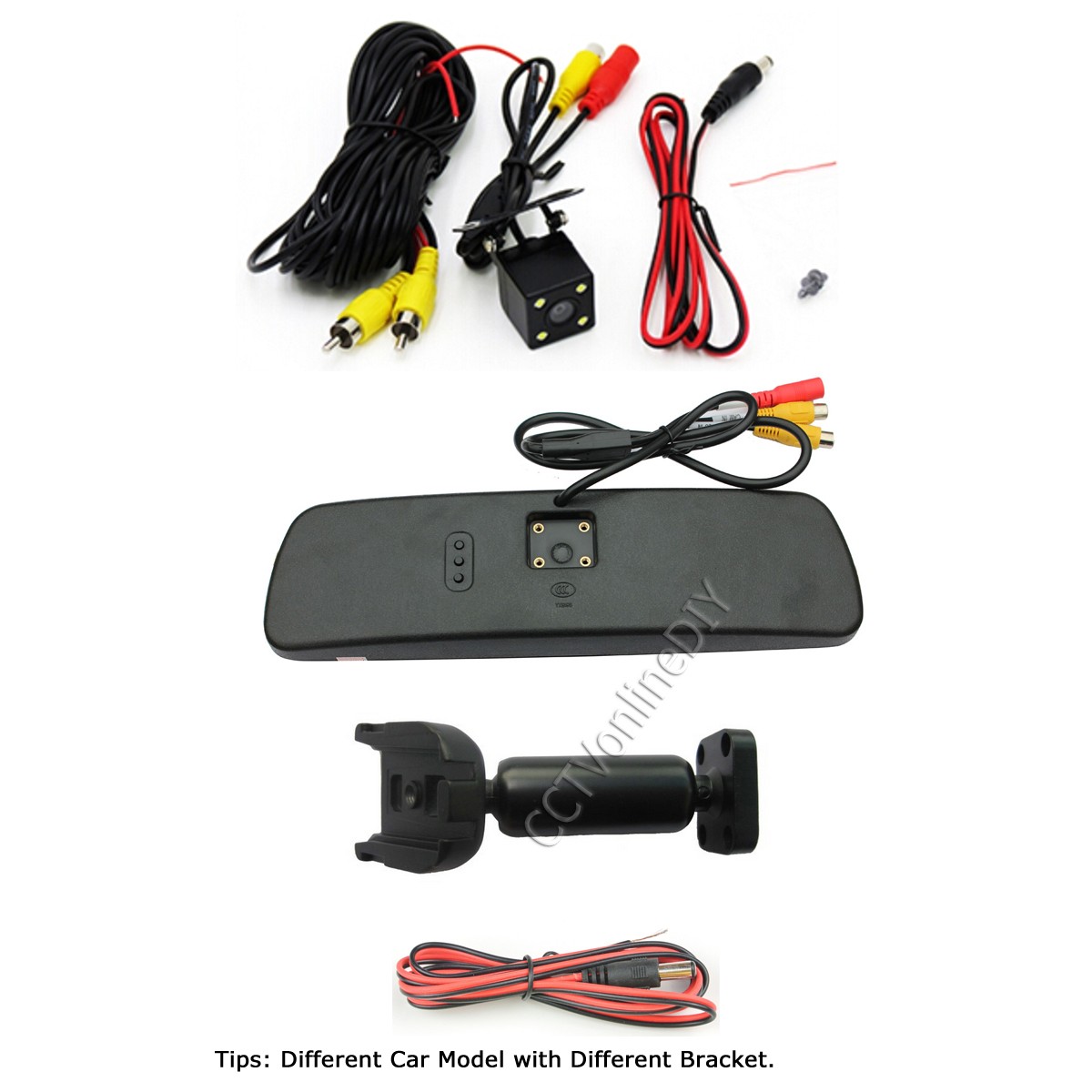

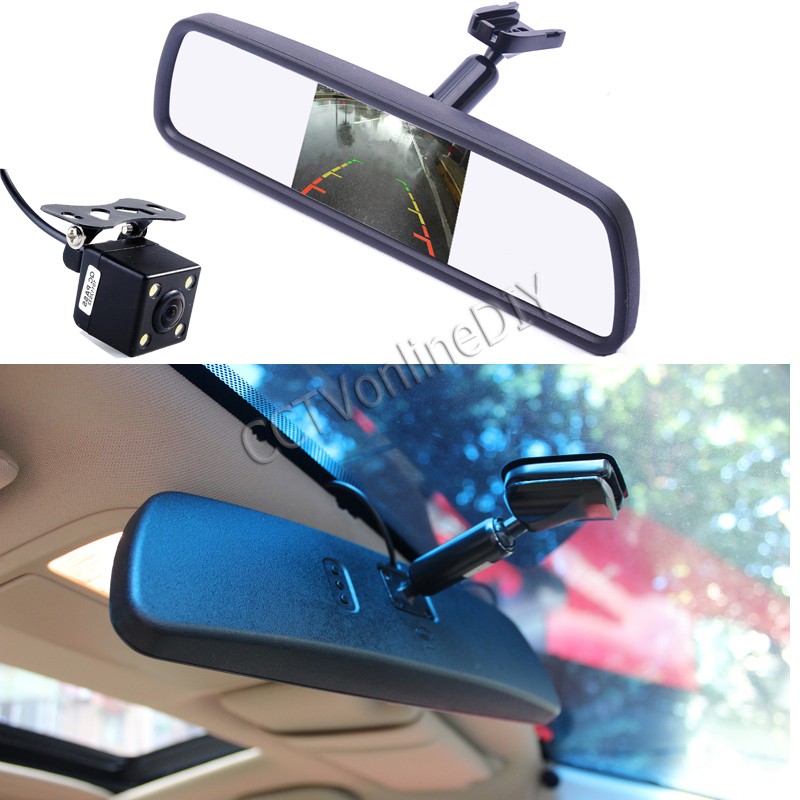

4.3" TFT LCD Screen Car Interior Replacement Rear View Mirror Monitor + CCD Day & Night HD Backup Reversing Camera System


Be the first to review this product

Availability: In stock

Price :

* Required Fields

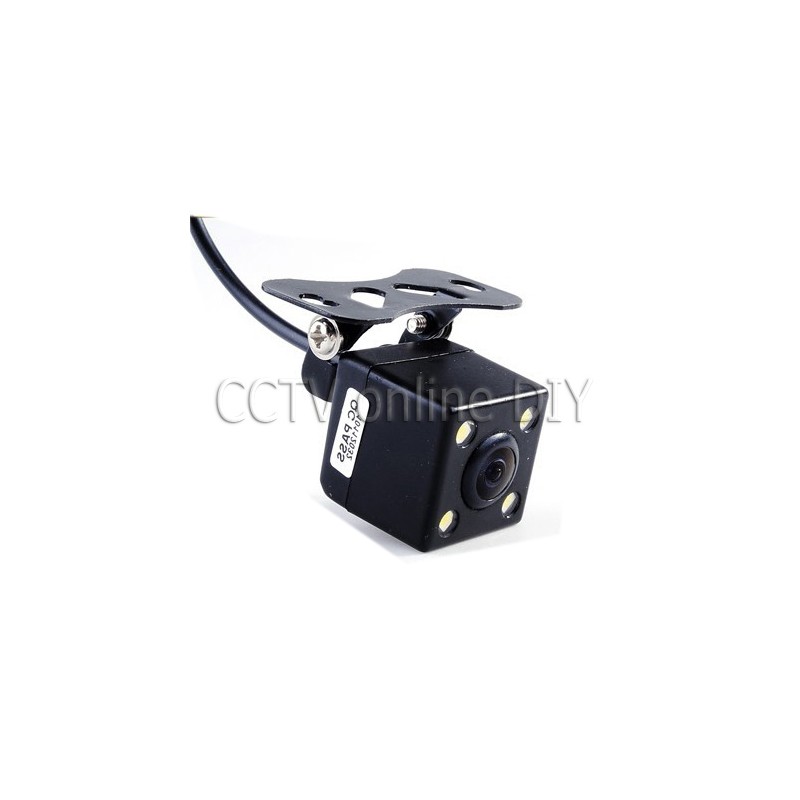

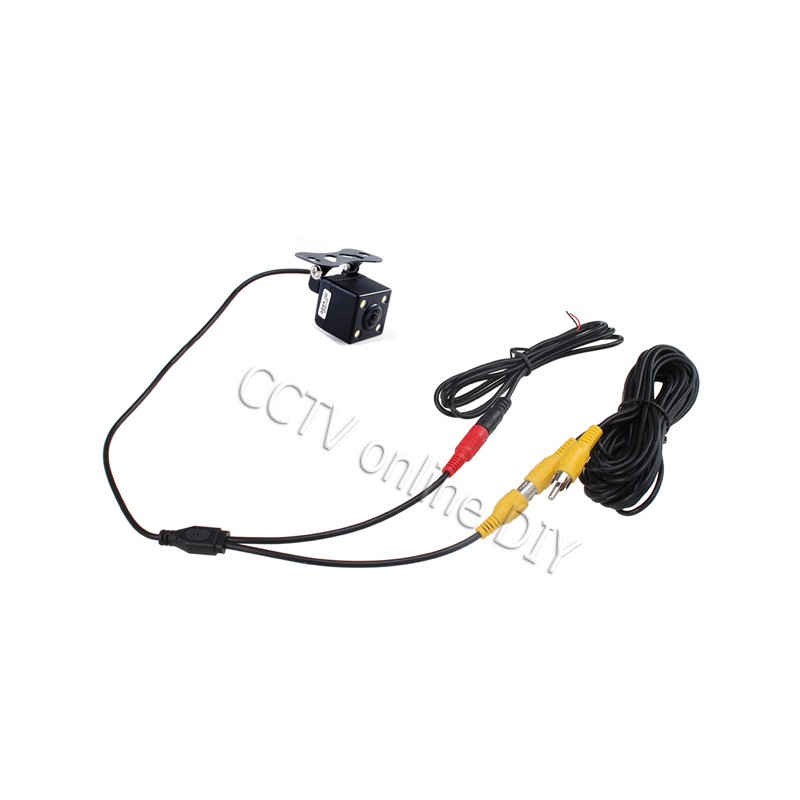

Sensor:1/4" PC7070 color image sensor
LED: 4pcs (not infrared LED)
TV system: PAL/NTSC
Effective pixels: 712H×486V(PAL)/704H×576V(NTSC)
Video output: RCA connector,1.0vp-p,75ohm
Resolution:420 TV lines
SNR Max:45dB
Pixel dynamic range:60dB
Frame rate:60fps(@27MHzin NTSC)/
50fps(@27MHzin PAL)
Shutter :Electronic Rolling Shutter
Image pipeline features :Auto exposure, AWB, AGC,
Auto flicker detection and cancellation
Image Reverse: Left-right mirror
Power supply: DC 12V±10%
Power consumption: Max 100mA
Operati0ng temperature:–30 to +60 degree(RH95% Max.)
Storage temperature:–20 to +70 degree(RH96% Max.)

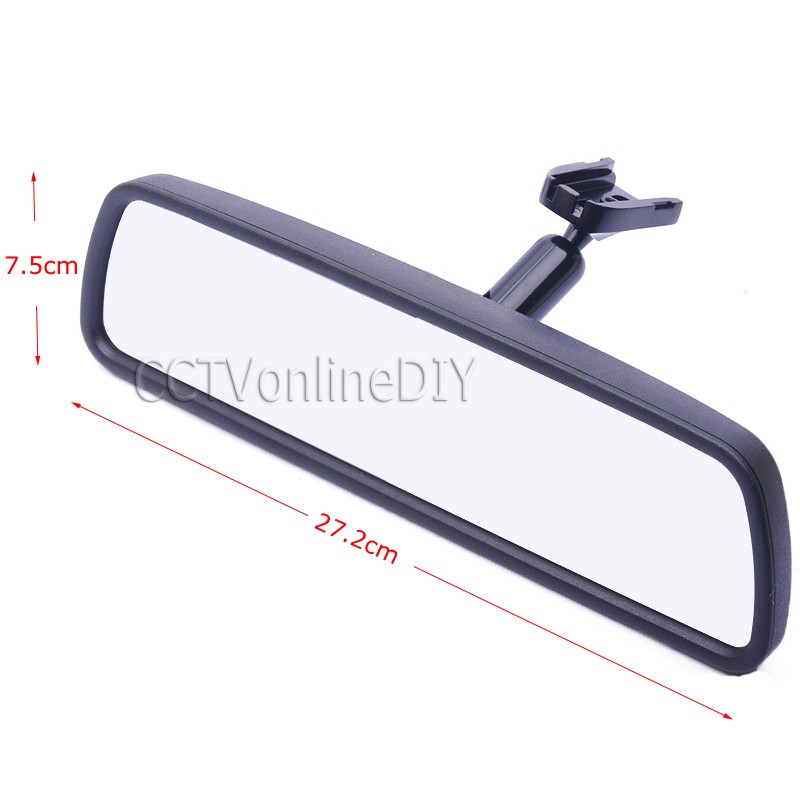

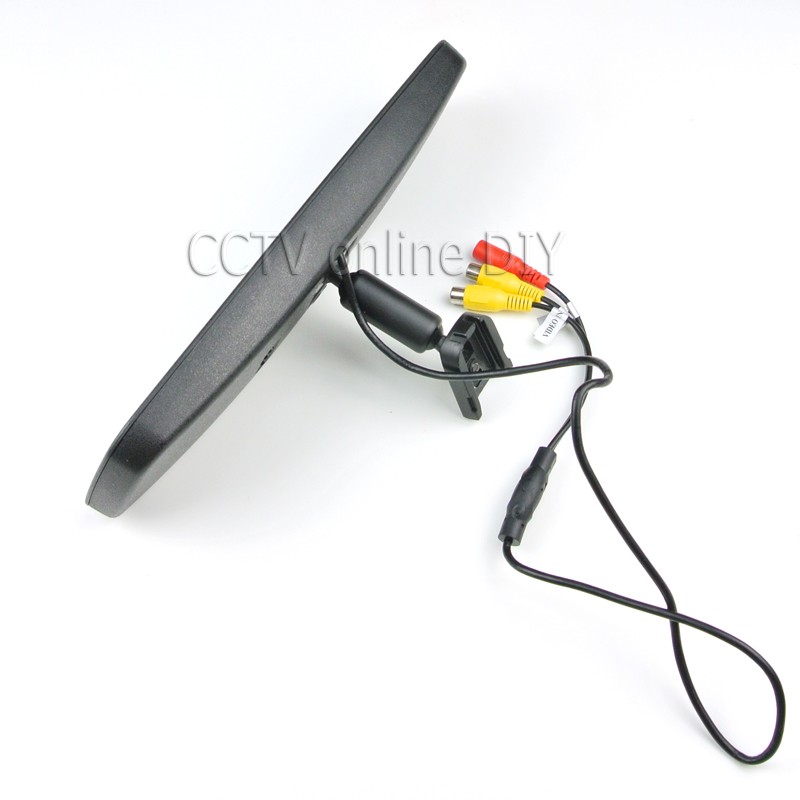

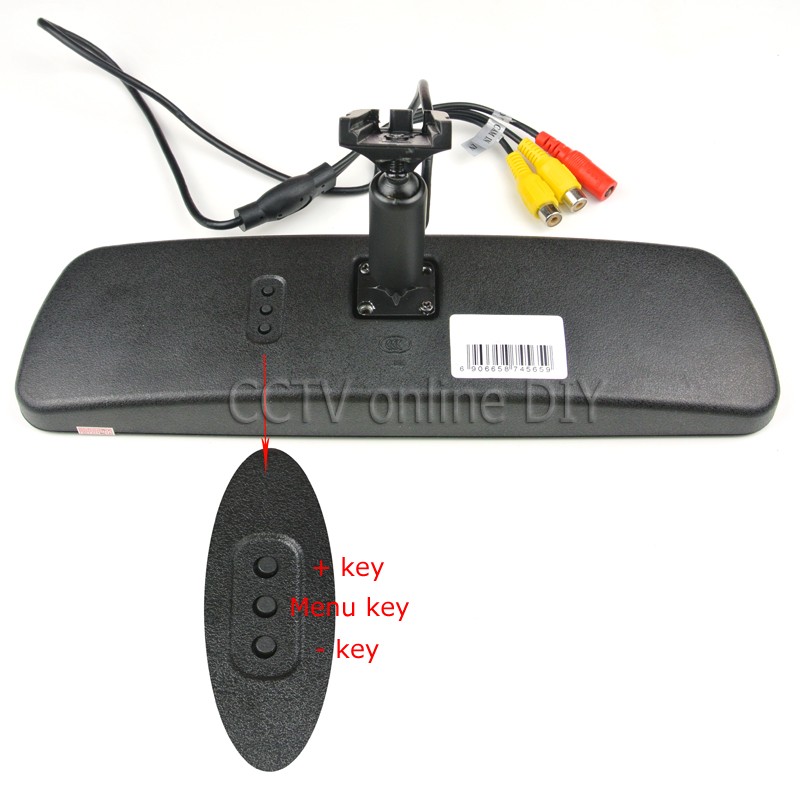

Rear View Mirror Monitor:
Screen Size: 4.3 inch
Double TV system: PAL/NTSC.
Resolution: 480*272*RGB
Two video input: AV1 for DVD/VCD, AV2 for back-view camera.
Auto switch to reversing picture; Special optical lens with anti-glare function and broad vision;
Connectable to visible parking sensor systems
Technical parameters
Operating Voltage: 12V DC
Operation current: 200mA
Operating temperature: -10degree ~ +65degree
Screen area: 9.5*5.3cm (Middle of mirror)

Important: Buyer need to send your car original bracket photo via message to confirm which bracket number is fit for your car, we do not return because of bracket doesn't fit.
