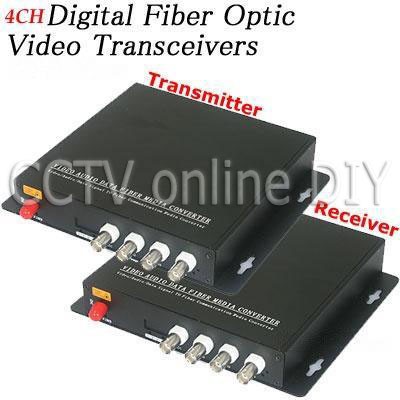

4 Channel Video Data Fiber Media Converter Digital Optical Transmitter and Receiver System For CCTV Security

SKU:COD-4OLTU01

Be the first to review this product

Availability: In stock

Price :
$168.00
USD

Details

Features:

  • 8-bit or digitally encoded and non-compression video transmission
  • Directly compatible with NTSC, PAL, and SECAM CCTV camera systems
  • Power supply and other parameter state indication, which can monitor the operation condition of system
  • Support no-damage regenerative trunk of video
  • Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
  • Industry-grade of operating temperature from -10 degree C to 75 degree C, which is applied to the different working environment
  • Hot-swap function
  • Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis.
  • Optical interface: FC
  • Abundant signal interface, such as video
  • Max range 25km






Application:

  • City traffic monitoring system
  • Police and safe city monitoring system
  • High way security protection and toll station system
  • Building and campus monitoring system
  • Industrial monitoring(airport, chemical plant, steel, oil, railway, irrigation works, mine and so on)
  • Military monitoring(storage, frontier defense, guard, national defense and so on)
  • Electronic power oil field, TV station program broadcasting system
  • Gymnasium(live video transmission)






Specification:



Optical:

  • Wavelength: 1310nm
  • Output Power: -3 to 2 dBm
  • Optic fiber: 9/125u single mode
  • Rx sensitivity: -25 dBm
  • Optical connector: FC
  • Distance: 25KM



Video:

  • Number of Channels: 4
  • Input/output impedance: BNC 75 ohm (unbalance)
  • Video bandwidth: 5HZ to 8MHZ
  • Standard video input/output voltage: 1.0Vp-p
  • Video voltage range: 0.6 to 2.0Vp-p
  • Differential Gain: < +/- 1.5%
  • Differential Phase: < +/- 1%
  • SNR: >60dB (8 bit)
  • Connector: BNC
  • Operating Voltage: DC 5V
  • Operating Temperature : -10 degree C to +75 degree C
  • Storing Temperature : -40 degree C to +85degree C
  • Humidity: 0 to 95% Non-condensing
  • MTBF: >= 100000Hours






Connection:





Item Include:

  • 1 x Video Fiber Media Converter Transmitter
  • 1 x Video Fiber Media Converter Receiver

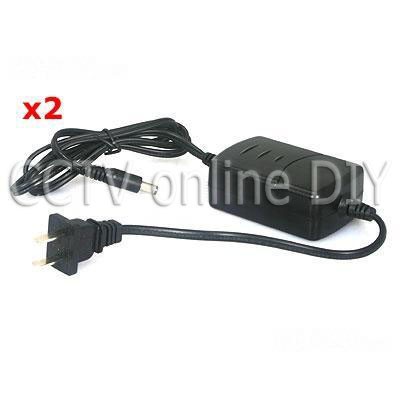

  • 2 x Power Supply for Video Fiber Media Converter
