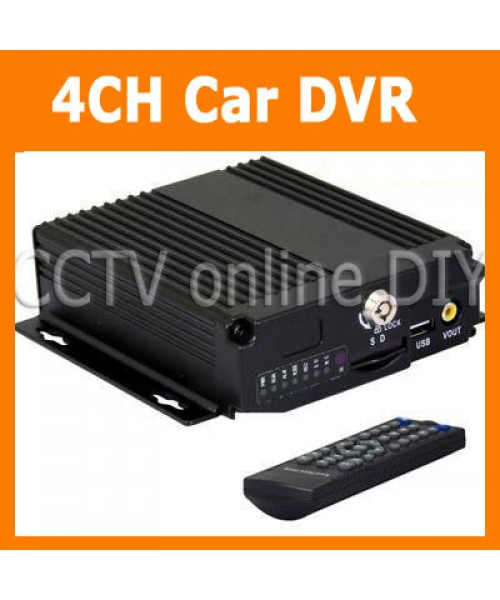

4CH H.264 Realtime SD Card Car Mobile DVR 4CH Audio 1D1+3CIF Realtime Recorder Support Max 32G


Be the first to review this product

Availability: In stock

Price :


Introduction :

This device is specially designed for the mobile DVR. It adopts embedded processor and embedded operating system, combines the latest technologies in the IT filed like audio and video compression/decompression technology. Its structure adopts special anti-vibration technology.


-There are four recording modes: manual recording, timing recording, motion detection recording and alarm recording;
-Support SD card storage. The recording file in the SD card can choose overwrite or don't overwrite.
Preview and playback
-Support single channel, 4 channel audio and video output;
-Support partial blind of the image;
-Support searching file by recording type, start time and end time;
-Support fast forward, slow forward, single frame and so on when playback;
-Support displaying local recording status, alarm status and motion detection.
-Support USB backup function
-Local signal value alarm input;
-Motion detection alarm;
-Abnormity processing alarm.


Main Processor: Hi3512
Operating System: Embedded Linux operating system
System Resource: 4-channel real-time recording simultaneously
Video Standard: PAL, NTSC
Image Compression: H.264
Audio Compression: ADPCM
Recording Mode: Manual, timing, alarm, motion detection.
Video Search: Time search, event search, channel search
Backup Mode: USB backup
Video Input: 4ch
Video Output: 1ch aerial port, 1ch lotus port
Audio Input: 4ch aerial port
Audio Output: 1ch aerial port
Monitoring Quality: PAL: 720x576(D1) NTSC: 720x480(D1)
Playback Quality: PAL: 352x288(CIF) NTSC: 352x240(CIF)
Image Control: 6-level adjustable
Motion Detection: 396(22×18) detection areas and multi-level sensitivity can be set
Picture Display: Single-picture view, four-picture view
Recording Rate: PAL: 25fps/second (adjustable) NTSC: 30fps/second (adjustable)
Recording Storage: SD card
Local Playback: 1 channel, 4 channel playback
Alarm Input: 4 switching value
Storage Port: 1 USB port, 1 SD port
USB Port: 1 USB1.1 port
Ignition Signal: 1
Power Supply: DC 6V~36V

Item Includes:

1 x 4CH H.264 SD Car DVR
1 x Remote Control
1 x 20Spell Port Line ( Video, Audio And Video Camera Power Supply Power Line )
1 x POWER IN Spell Port Power Input Line
1 x KEY
