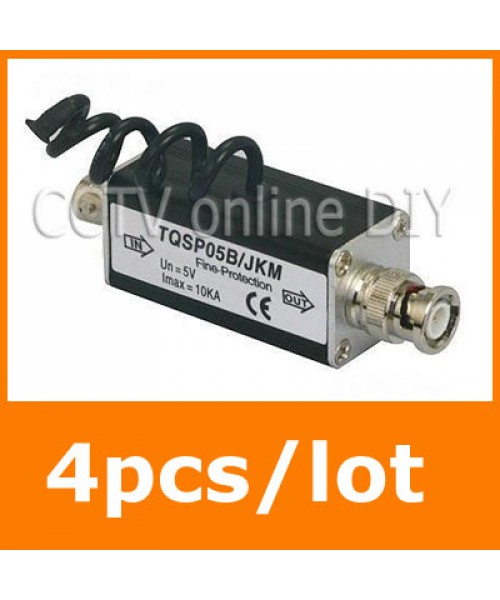

4pcs/lot CCTV BNC Video DVR Camera Surge Lightning Arrester Protector

SKU:RJ-01

Be the first to review this product

Availability: In stock

Price :
$31.99
USD

Details

Description:


Coaxial Connections series signal protectors are designed for protection of communication network circuits, which are sensitive to electromagnetic interference, avoid destruction result from lightning over-voltage, induced over-voltage and static discharge.


Specification:


Continuous operating voltage Un: 5V
Nominal discharge current (8/20s) In: 5kA
Max. discharge Current (8/20s): 10kA
Protection level Up: Line~Out-conductor: < or =30V
Out-conductor: < or =100V
Output Voltage threshold at 1kV/s: < or =700V
Adapt transmission rate: 10Mbps
Insertion Loss: < or =0.5dB
Respond time: 1ns
Working environments: Temperature -25+65 degree
Humidity relative < or = 95 (25 degree)
Altitude < or =3km
Connector: BNC
SMB
N
TNC
NEC
L9
CC4
F

Features:

1. Multi-Protection circuits, low residual voltage.
2. Large discharge current and quick response.
3. Superior transmission performance.
4. Excellent technics and long life even in bad circumstance Convenient installation.


Instruction:

1. Connect in series between protected equipment and signal channels. Should install close to the protected equipment
2. Connect IN-port to signal channels and OUT-port to protected equipment.
3. Connect lead to grounding bar dependably.
4. No special maintenance needed. If malfunction occurs in operating system, please remove the protector, and then check the system. If system recovered, that means the protector has been damaged and must be replaced.



Item Include:

4 x Coaxial Connections Series Signal Protectors
