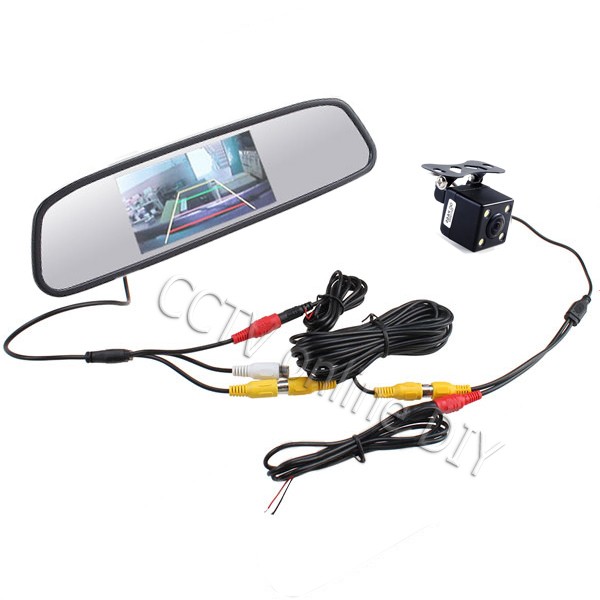

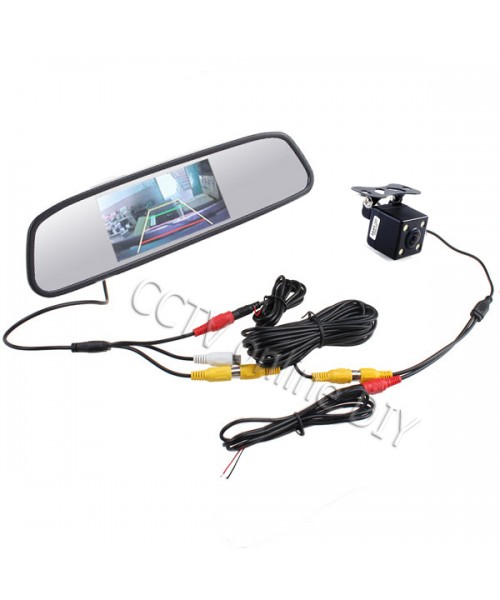

4.3" Screen TFT LCD Car Rear View Rearview Mirror Monitor + Backup Camera

Details

Specifications:

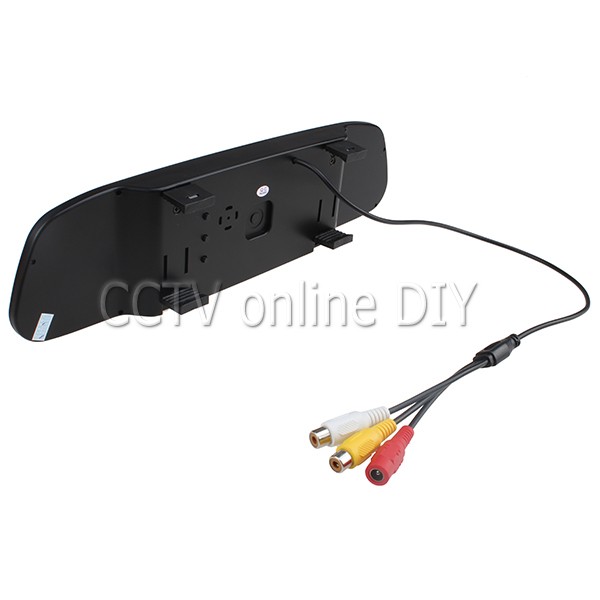

Monitor:

Screen Size: 4.3inch

Display Screen: TFT-LCD

Display Resolution: 480 x RGB x 272pixels

Aspect Ratio: 16:9

Power Consumption: <=2W

Power Supply: DC 12V

Video Input: AV1 to VCD/DVD (defaulted), AV2 to backup camera, AV signal auto detect power on/off

Signal System: PAL/AUTO/NTSC

Brightness: 250cd/m²

Contrast Ratio: 300:1

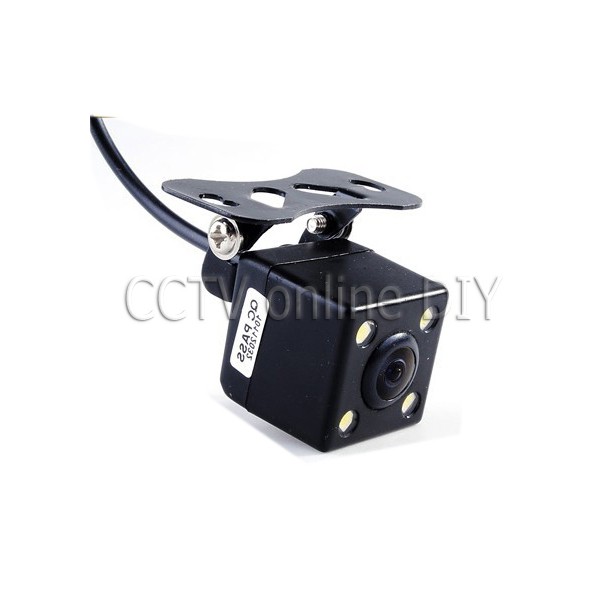

Camera:

Sensor:1/4" PC1030 color image sensor
LED: 4pcs (not infrared LED)
TV system: PAL/NTSC
Effective pixels: 712H×486V(PAL)/704H×576V(NTSC)
Video output: RCA connector,1.0vp-p,75ohm
Resolution:0.5Lux
Resolution:420 TV lines
SNR Max:45dB
Pixel dynamic range:60dB
Frame rate:60fps(@27MHzin NTSC)/
50fps(@27MHzin PAL)
Shutter :Electronic Rolling Shutter
Image pipeline features :Auto exposure, AWB, AGC,
Auto flicker detection and cancellation
Image Reverse: Left-right mirror
Optical:170°
Power supply: DC 12V±10%
Power consumption: Max 100mA
Operati0ng temperature:–30℃ to +60℃(RH95% Max.)
Storage temperature:–20℃ to +70℃(RH96% Max.)
Water-proof:IP67-IP68

Product Features:

1.TFT-LCD display for DVD/VCD player.

2.Special anti-glaring glasses for eye sight protection, in position of the original rearview mirror.

3.Automatically switch to rear view system when reversing, ensure to parking safely.

4.Can connect to VCD/DVD/TV/GPS and etc. video input device.

5. Net installed products, Simple installation and removal easy

6.Color: Black

Package Content:

1 x 4.3 inch TFT LCD Mirror Monitor
1 x Camera
2 x Power cable
1 x 5m Video cable
1 x user manual
