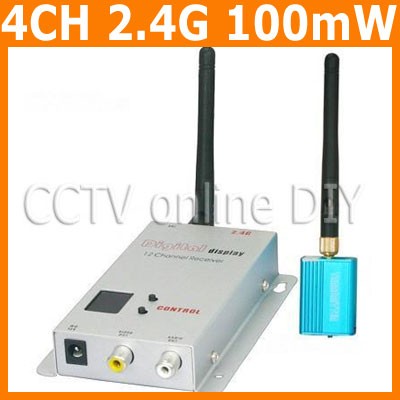

CCTV 4CH 100mW 2.4G Wireless AV Transmitter and Receiver Kit for Security Camera Model Airplane

SKU:ESPT100MW

Be the first to review this product

Availability: In stock

Price :
$49.00
USD

Details

Features:

The suit have two wire: one is Audio&Video connect wire. have two red plug and two white plug, is connect receiver to the monitor or TV. Another wire is message connect wire, have 5 plug. white and square plug is connect transmitter, yellow plug connect camera's video, white plug connect camera's audio, red plug connect DC 12V,and black plug connect camera's power input jack.
Select transmitter Frequency: Change transmitter's small switch place can change transmit frequency like the following picture.
Setting the same channel with transmitter and receiver.

Attention:

Should install it at the place where children cannot touch.
Please pull the transformer out when you stop using it.
Do not touch the emission antenna in case you will be burned when the transmitter is electrified.
Do not expose it at the damp place for preventing it from water or protecting people from electric shock.
Please use the transformer produced by our company. Or our company will not be in charge of any damage incurred by the product .
Our company will not be responsible for any damage incurred by your amending or dismounting without a permit.

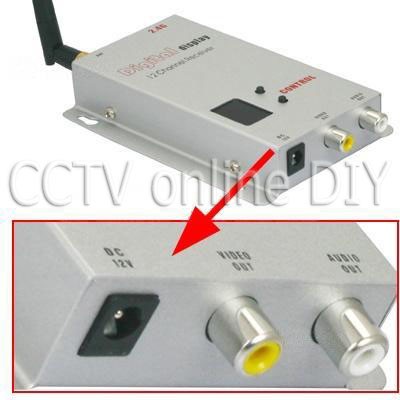

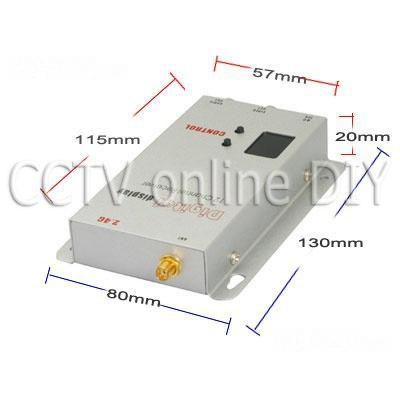

Receiver Specifications:



Voltage: DC 7-12V
Output Current: 50mA
Video Output: 1Vp-p(FM)
Audio Output: 1Vp-p(FM)
Operation Temperature: -10 degree to +50 degree

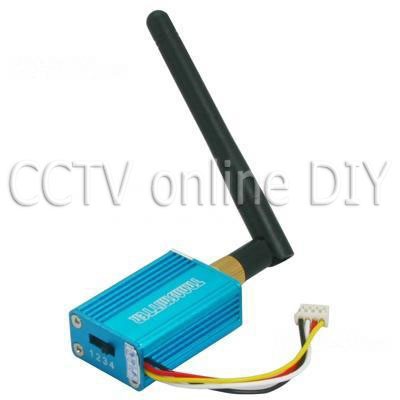

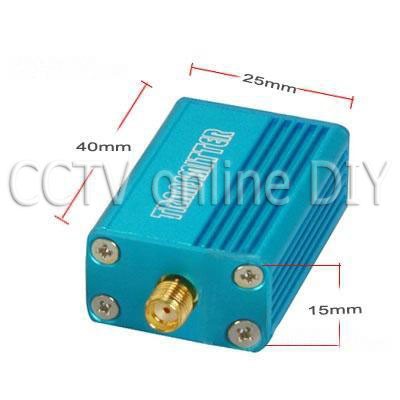

Transmitter Specification:



Voltage: DC 12V
Output Power: 100mw
Output Current: 50mA
Audio Output: 1Vp-p(FM)
Frequency: 2.4G/4CH
2.410G 2.430G 2.450G 2.470G

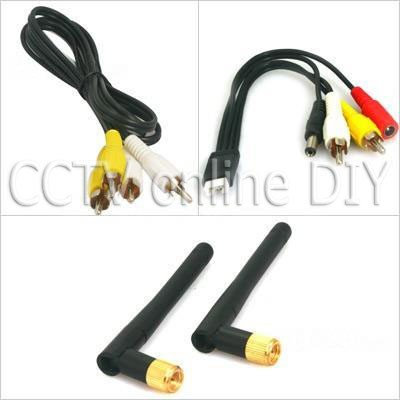

Item Includes:
1 x 2.4G Channels Wireless AV Teceiver
1 x 4CH 100mW Wireless AV Transmitter
1 x AV Cable
