Introduction:

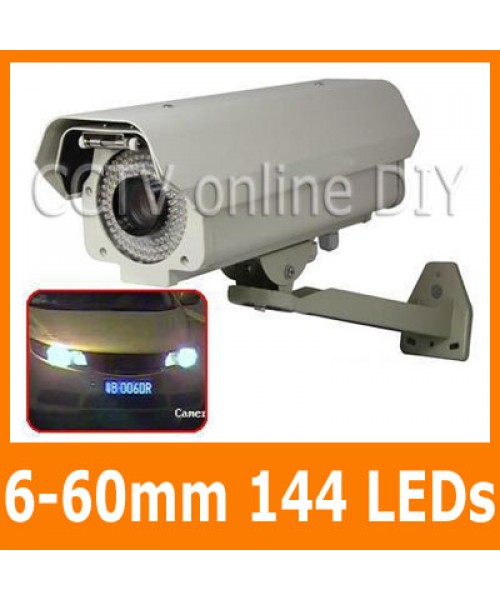

The camera adopts 1/3" SONY CCD sensor and DSP (digital signal processing) technology, with high-resolution and high sensitivity; can be controlled by the key control and glare shield auxiliary light source (Eclipse Function) and the light inhibition (Halo shrinkage) of the opening and closing. (The intensity of auxiliary and opening time can be adjust), glare shield (Eclipse Function) and light inhibition (halo contraction) are adjustable, color and color to black and white could be setting according to the needs . It applies to toll station, mount, entrances and exits of parking, traffic lights, and other monitoring sites, which can effectively capture license plates of passing cars and license plates of vehicles traveling on the road and vehicle identification.
Specifications
Image Sensor Device | 1/3"SONY ICX673 CCD |
Effective Pixels | 792(H) x 582(V) |
System of Signal |
PAL |
Horizontal Resolution | Color:650TV |
Minimum Illumination | Color:0.01Lux at F1.2 |
S/N Ration | More than 48dB |
Electronic shutter | 1/50-1/100000/sec |
Electronic shutter control | On/off switchable |
Automatic Iris Drive | On/off switchable |
Backlight Compensation | On/off switchable |
White Balance | AUTO |
Lens | AUTO IRIS f=6-60mm OR f=5-100mm |
Light Distance | 1-60M |
Auto iris lens | DC/VIDEO |
Video output | 1.0Vp-p,75 ohm |
Power supply | AC220V |
Operation temperature | -10 degree to +50 degree |
Dimension | 140mm*143mm*390mm |
Real panel sketch map: Please do as the operating guide shows.
- SW1(AEME,ST1,ST2,ST2,MIR) is mainly used for setting the shutter parameters and mirror image function.
- SW2(AES,WB,ELC,AGC,DAY)is mainly used for setting highlight inhibiting patterns, automatic gain, color or WB.
- DC-LEVEL : Used for adjusting the aperture driving level, clockwise increased.
- IRIS : To connect the lens drive aperture line.
- VR-ELC: Highlight shield, range size adjust potentiometer, Clockwise increased.
- LED-BRIGHT: The potentiometer to adjust the brightness of the secondary light source.
- LED-TIME: The potentiometer to adjust the open time of the secondary
- light source.
K2:A button to enlarge the highlight range.
K3:A button to decrease the highlight range. - LEDS-DISPLAY:Used to show strong inhibition setting and electronic shutter setting.
Notice:
- When the camera is used for parking or toll booths, light inhibiting patterns are only recommended.
- When using bright inhibition pattern plus manual electronic shutter mode, this camera realize electronic shutter automatically switch function, the daytime shutter for: 1/500 seconds, evening for: 1/125 seconds.
- When it used for high way, suggest using bright inhibition pattern + manual electronic shutter mode, and according to the local highway environment will electronic shutter is set in 1/125 seconds.
- This camera with built-in 5-50mm automatic aperture manual zoom lens.
General Standard:
- The speed under 40 kilometers/hour, electronic shutter set at 1/125 SEC.
- The speed under 60 kilometers/hour, electronic shutter set at 1/250 SEC.
- The speed under 80 kilometers/hour, electronic shutter set at 1/1500 SEC.
Warranty
- In order to expand the life span of the camera, you would kindly use the power supply we recommended.
- All after-sale service should through the corresponding dealers.
- Within one year from the factory, because quality problem and damaged the cameras will free replacement or maintenance, other causes damage, will meet charge maintenance.
Item Include:
- 1 x Profession CCTV 650TVL Effio 6-60mm Lens 144 Leds OSD Car plate number capture IR Camera
- 1 x Bracket
