Details
Features:
- 1/3" 1.3 Mega pixel Aptiva CMOS image sensor
- High-performance TI DaVinci series DSP
- H.264&MJPEG video compression and JPEG image capture
- Max 25/30fps @ 720P(1280×720) , 15fps @ 1.3M(1280×960) resolution
- Dual encoding streams supported
- Lens: 6mm
- Max. IR Distance: 20m
- True Day/Night ICR
- IP66 all-environments protection, 4000V thunder-proof, constant temperature automatic control & anti-fog
- Newly designed fashionable WEB Client
- Free CMS, free mobile phone APPs
- Support DC12V and PoE
Specifications:
General | ||
Processor | TI DaVinci Series DSP | |
Operating System | Embedded LINUX | |
Resource | Simultaneous remote monitoring, local recording and remote control | |
User Interface | WEB, CMS(DSS, PSS), DMSS, NVR | |
Camera | ||
Image Sensor | 1/3” 1.3 Megapixel Aptina CMOS | |
Effective Pixels | 1280(H)×960(V) | |
Electronic Shutter | Auto/Manual, 1/3~1/10,000s; Auto/Manual, 1/4~1/10,000s | |
Mini. Illumination | 0.1LUX/F1.2(Color), 0.05LUX/F1.6(B/W), 0Lux(IR ON) | |
Signal Noise Ratio | >50dB | |
Gain Control | Auto/Manual | |
White Balance | Auto/Manual | |
Day/Night | ICR | |
Lens Mount | M12 | |
Lens | Default: 6mm | |
Video | ||
Video Compression | H.264/JPEG | |
Image Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) | |
Encoding Speed | 1.3M(1~15fps)+ D1(1~15fps); 1.3M (1~15fps)+ D1(1~15fps) | |
Encoding Speed | 720P(1~25fps)+ D1(1~25fps); 720P(1~25fps)+ D1(1~25fps) | |
Bit Rate | 128Kbps~8192Kbps | |
Snapshot | Fastest 1fps JPEG capture | |
Video Format | PAL; NTSC | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Network Functions | HTTP, TCP/IP, ARP, IGMP , ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour, SNMP | |
Remote Operation | Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade | |
Environmental | ||
Max. IR Distance | 20 m | |
Power Supply | DC12V, PoE | |
Ingress Protection | IP66, 4000V thunder, surge and wave protection | |
Power Consumption | Max. 4W | |
Operating Environment | -10°C~+50°C, 10%~90% | |
Dimension | 64.43mm x145.02mm | |
Weight | 0.35Kg |
Item Included:

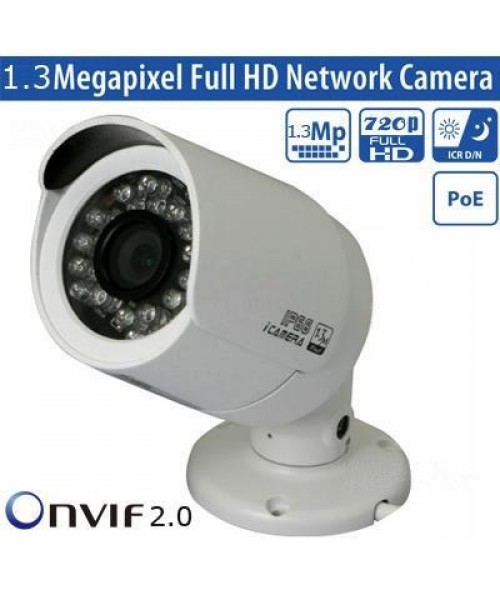

- 1 x CCTV H.264 1/3 1.3 Megapixel Full 720P HD 6mm lens Outdoor IR Network IP Camera
- 1 x User Manual
- 1 x CD
