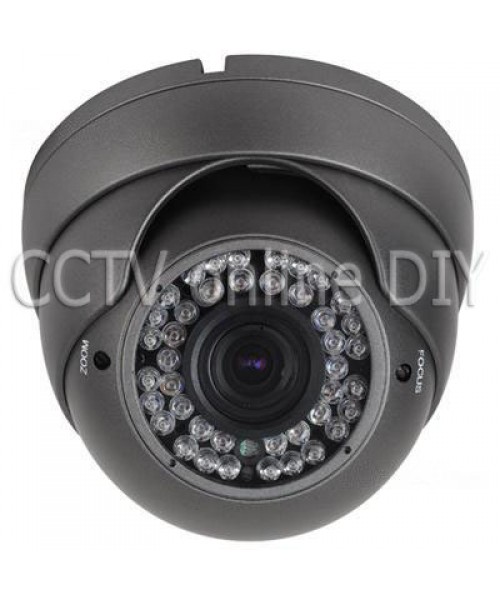

Security CCTV 1/3" SONY Super HAD II CCD 700TVL 2.8-12mm Zoom Lens 42 IR Leds Dome Camera With OSD Menu


Be the first to review this product

Availability: In stock

Price :



  • New Generation CCD & DSP
  • 700 TV Lines in color
  • Super Head-Light suppression
  • Digital Noise Reduction
  • OSD Menu


Image Sensor 1/3" Sony Super HAD II CCD(960H)
Pixel NTSC: 976(H) X 508(V); PAL: 976(H) X 596(V)
Scanning System 2:1 Interlace
Synchronization Internal / External Sync.
Video Output 1. 1V p- p/ 75 Ω
Resolution 700 TV Lines
S/N Ratio More than 50dB
Min. Illumination Color: 0.5 Lux; B/W: 0.01Lux
Shutter Speed Auto: 1/60-1/100,000sec (NTSC); 1/50-1/120,000sec (PAL)
Fixed: 1/50, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000sec
White Balance ATW / Push / User1 / User2 / Anti CR / Manual / Push Lock Selectable ATW: 1080K-10500K
BLC BLC / HLS (Head-light Suppression) Selectable
ATR On (Brightness, Contrast adjustable) / Off
Gain Control 6- 44 .8 dB Adjustable (Manual Shutter, AGC)
2D-DNR On / Off
Motion Detection On / Off (4 Zone)
Privacy Masking On / Off (4 Zone)
Mirror On / Off
Day & Night Color / B&W / Auto Selectable
Image Adjustable Brightness / Contrast / Sharpness / Hue / Gain Adjustable
Lightning Proof Multi-level Lightning Proof
Power DC 12V
IR Distance 20m
Built-in Lens 2.8-12mm
Weatherproof Standard Ip66
Operating Environment Temp . -10 degree to 50 degree/ RH 95 % Max
Dimension 120mm (D)×86mm(H)
Weight 0.74Kg

Item Includes:


  • 1 x 1/3 Sony HAD CCD 700TVL IR Dome Camera
