Details
DVR Feature:
- H.264 compression algorithm ideal for standalone DVR
- Real-time live display for Full D1, Real-time live recording with each channel for D1:30FPS
- Pentacle function: live display, recording, playback, backup & remote access

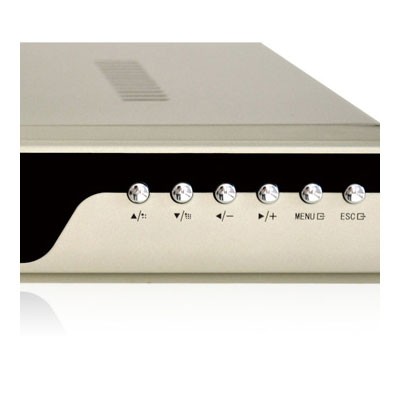

- Multiple control methods: Front panel, remote controller, USB mouse, network controller.
- Multiple recording modes: manual recording, schedule recording, alarm recording, motion detection recording, time recording, and pre-recording.
- Ethernet interface is provided for realizing remote monitoring, remote playback, acoustic monitoring, remote setting and remote software upgrading through network browser.
- Easy backup methods: USB devices, network downloads.
- Support all channel playback at the same time, and searching according to time or event
- Support remote view with Mobile Phone(Windows CE\Symbian\Iphone\ Blackberry\ Android)
DVR Specification:
System | Main processor | Industry level embedded microprocessor |
Operation system | Embedded LINUX operation system | |
System resource | synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation | |
Interface | Operation interface | 16 bit true color graphical menu interface, mouse operation supportive |
display | 1/4 image display | |
Video | Surveillance image quality | PAL: 704 x 576; NTSC:720 x 480 |
Recording image quality | CIF PAL: 352 x 288 NTSC:360 x 240 D1 PAL: 704 x 576 NTSC:720 x 480 |
|
Image compression | H.264 | |
Image control | 6 options | |
Recording frame rate with each channel | PAL NTSC CIF: 25fps 30fps D1: 25fps 30fps |
|
Image motion detect | 396(22 x 18) detection areas, multiple sensitivity | |
Audio | Audio compression | G711A |
Talk-back | supportive | |
Recording And Playback |
Recording mode | manual >alarm>motion detect>timing |
Local playback | Single channel playback, All channels playback,4CH Full D1 Real-time Playback | |
Recording look-up mode | Time searching, calendar searching, affair searching, channel searching, information searching | |
Storage And Backup |
Hard disk capability for each channel | Audio: 28.8Mbytes/hour Video:80~250Mbytes/hour |
Recording storage | Hard disk, network | |
Backup mode | Network, USB | |

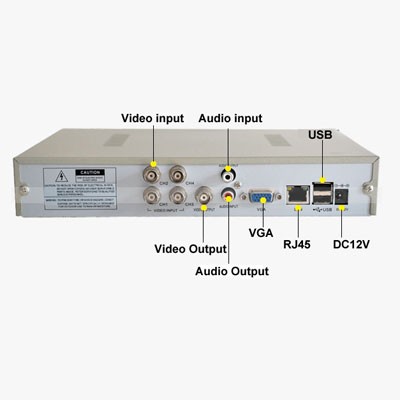

Port | Video input | 4channel BNC |
Video output | 1channel BNC, 1channel VGA output | |
Audio input | 1channel RCA | |
Audio output | 1channel RCA | |
Network port | RJ45 10M/100M adoptive Ethernet network port | |
USB port | 2 USB ports(with USB backup and USB mouse) | |
Hard disk port | 1 SATA port with 2TB hard disk(The Item Doesn't Contain Hard Disk) | |
Other | Power supply | 12V/3A external power supply |
Power consume (without hard disk) |
<10W | |
Working temperature | 0 degree to +55 degree | |
Working humidity | 10%-90% | |
Air pressure | 86kpa-106kpa | |
Installation | Frame installation, platform installation |
Item Include:
- 1 x 4CH H.264 Standalone Network CCTV DVR
- 1 x Power Adapter
- 1 x Mouse
- 1 x Remote Control
- 1 x CD
(The Item Doesn't Contain Hard Disk)
