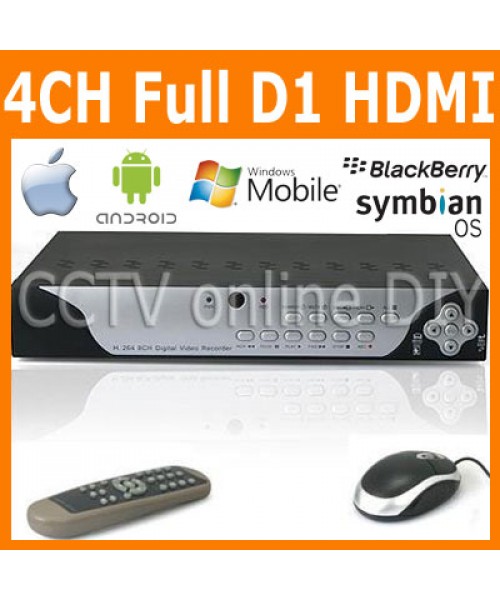

4CH H.264 FUll D1 Realtime Recording 1080P HDMI Port Network Standalone CCTV DVR Support Mobile Phone View

SKU:COD-4DVR02

Be the first to review this product

Availability: In stock

Price :
$222.00
USD

Details

Feature:


  • video compression standard format for h.264
  • Two USB interface, one for data backup, one for the mouse operate
  • 16 true color translucent graphical menu interface, the menu options annotation tip
  • 4 CH synchronous playback
  • Two levels of user authority management
  • Support network to the machine split-screen real-time browsing, parameter setting, copy or video playback
  • Support Mobile Phone View (iPhone, Blackberry, Android, Symbian Windows Mobile)
  • Support English, Spain, Italy, Greece, Russia, Portugal, Japan, Romania language

Specification:



Audio input Analog video input 4 CH, BNC interface (level: 1.0 Vp - p, impedance: 75 ohm), PAL/NTSC adaptive
Audio in 4 CH, RCA interface (level: 2.0 Vp - p, impedance: 1 k ohm)
AV output CVBS output 2 CH, BNC interface (level: 1.0 Vp - p, impedance: 75ohm)
Resolution: PAL: 704 * 576, NTSC: 704 * 480
VGA output 1 CH, resolution: 800 * 600, 1024 * 768, 1280 * 1024
HDMI output 1920*1080P
Audio output 2 CH, RCA interface (linear level, impedance: 600ohm)
Video coding parameters Video compression standard H.264
Video View/Record/Playback/ resolution D1 (PAL: 704 * 576, NTSC: 704 * 480)
Video View/Record/Playback/ frame D1 (PAL: 100/Fps, NTSC: 120/fps)
Video code rate Image quality adjustable, variable code flow, fixed code flow optional
Code flow type Compound flow
Audio compression standard G.711
Double code flow support
Synchronous playback Support 4 CH
Preview display Support the automatic wheel patrol, PIP display, electronic amplification
Video management Video mode Boot automatically continuous, timing video, mobile detection, trigger alarm, remote client video
Video save The hard disk, the network backup
backup Support U disk/mobile hard disk backup, network backup
Hard disk drive type 1 SATA interface
Maximum capacity Each interface support capacity greater than 2 TB hard
network Network function Support mobile monitoring, real-time network monitoring, remote DVR parameter Settings
Network protocol Support TCPIP/UDP/DHCP/DNNS/PPPoE agreement, etc
External interface Network interface 1 RJ45 10 m / 100 m adaptive etheric WangKou
Serial interface 1 standard RS - 485 serial interface; Support PELCO - P and PELCO - D agreement
USB interface 2 USB 2.0
Alarm input 4CH
Alarm output 1CH
power DC12V/3A
Power consumption (excluding hard disk) ≤10W
Working temperature 0 degree--+55 degree
Work humidity 10%--90%
weight 2.33KG





Item Include:


  • 1 x 4CH H.264 FUll D1 Realtime Recording 1080P HDMI Port Network Standalone CCTV DVR
  • 1 x USB Mouse
  • 1 x Power Adapter
  • 1 x CD
  • 1 x User Manual
  • 1 x Remote Control
  • (The Item Doesn't Contain Hard Disk)
