Details
Features:
- H.264 video compression format
- ADPCM audio compression format
- Support CIF full Realtime mode (View, Recording, playback, backup, Mobile Phone View, Network Surveillance)
- Friendly Menu reminder
- Support Multiple Recording modes(manual, cooling, motion detection, alarm, sensor triggered)
- support random combine mult-channel replay and time search, event search (alarm, motion detection)
- Supports Network Protocol (TCP/IP, UDP, DHCP, DNNS, PPPoE)
- Network Remote(Remote Surveillance, playback,PTZ control and Menu set)
- Support to real-time remote view with IE (Internet Explorer) and CMS
- Support USB flash disk, USB disk, & Network backup
- Support 3-5 User online View Surveillance simultaneously
- Support mobile Phone View (iPhone, BlackBerry, symbian, Android)
- Multiple language OSD
Specification:
Video Compression: | H.264 |
Video System: | NTSC / PAL |
Operation System: | Linux |
Video Input : | 4-channel BNC inputs |
Video Output: | 2-channel BNC & VGA Port Outputs |
Audio Compression: | 8kHz16bit ADPCM |
Audio Input / Output: | RCA 4-channel inputs / 2-channel outputs |
Display Frame Rate: | NTSC: 120 fps / PAL: 100 fps |
Playback Resolution: | PAL: CIF(352x288) ,HD1(704×288), D1(704×576) NTSC:NTSC:CIF(352×240) HD1(704×240) D1(704×480) |
Total Recording Frame Rate: | PAL: 100fps@CIF, 50fps@HD1, 25fps@D1 |
Recording Mode: | Always / schedule / motion detection / sensor triggered |
Recording Pack Time: | 15/30/45/60mins selectable |
HDD : | Max Support 1 x 1TB SATA HDD(The Item Doesn't Contain Hard Disk) |
Network Interface: | RJ45, 10M/100M |
Network Protocol: | Support TCP/IP, UDP, DHCP, DNNS, PPPoE |
Network Function: | Support to live view with IE (Internet Explorer) & with Mobile phone |
USB2.0: | USB mouse, USB disk (backup, upgrade) |
Backup: | USB flash disk, USB disk, & Network |
PTZ Control: | Built-in RS485, support PELCO-P & PELCO-D |
Power Supply: | DC 12V/3A (power adaptor included) |
Power Consumption: | 10~15W |
Working Temperature: | 10°C to +40°C |
Working Humidity: | 10% to 90% |

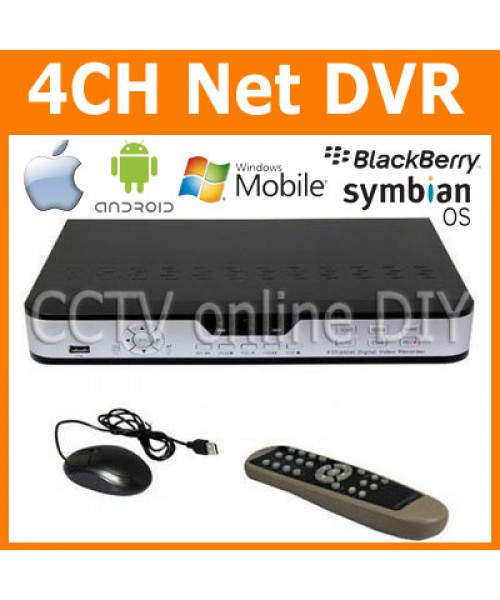

Item includes:
- 1 x Security 4CH H.264 CIF realtime Recording Standalone Network CCTV DVR
- 1 x Power Adaptor
- 1 x User Manual
- 1 x USB Mouse
- 1x Remote Controller
- 1 x Software CD
- (The Item Doesn't Contain Hard Disk)
