Details

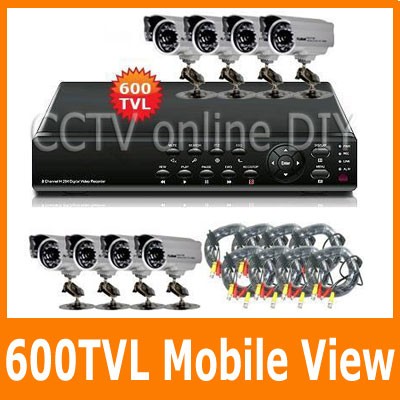

The 8CH H.264 Realtime network Standalone DVR System is designed specially for security and defense field which is an outstanding digital surveillance product. It introduces embedded LINUX OS operating system which is more stable. The DVR has 16-bit true-color semi-transparent graphical menu interface, menu options tip . A variety of recording modes: manual, timing, motion and alarm recording . It support mobile phone monitoring and event classification and precise time search and playback.
The DVR System can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.
The DVR System can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.
DVR Features:
- Standard H.264 video compression format
- 16-bit true-color semi-transparent graphical menu interface, menu options tip
- A variety of recording modes: manual, timing, motion and alarm recording
- Optimized 4-ch simultaneous playback (single playback for 8-ch ones)
- A variety of backup (USB disk, mobile hard disk, network)(The Item Doesn't Contain Hard Disk)
- One USB2.0 for data backup, one USB1.1 for the mouse operation
- Multi-functional operation, recording, playback, monitor, backup and network transmission can be realized at the same time
- Dual stream technology
- Support network to implement multi-screen real-time browsing, parameter setting, copy or playback
- Support mobile phone monitoring
- Support event classification and precise time search and playback
- Defaulted parameter value fast recovery
- Flexible USB interface for mouse

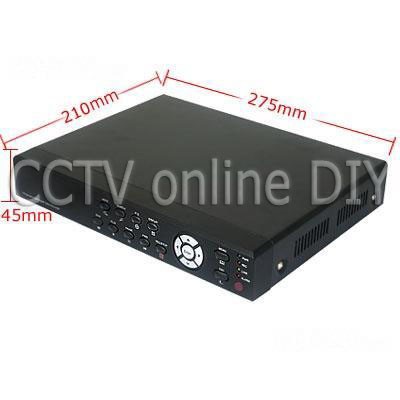

DVR Specification:
Operating system | Embedded LINUX OS |
Video compression | H.264 |
Video/Audio input | 8 channels BNC |
Video/ Audio output | 1 channel BNC |
Display spilt | 1/4/8-channel |
VGA output | Support 600*800 1024*768 1280*1024@60Hz |
Multiplex operation | Live, recording, network, ,mobile phone surveillance simultaneously |
Recording mode | Timer/manual/motion detection/alarm |
Recording frame rate | PAL:200fps NTSC:240fps |
Recording quality | High, normal ,low |
Recording resolution | PAL: D1(704 x 576), NTSC: D1(704 x 480) |
PAL: CIF(352 x 288), NTSC: CIF(352 x 420) | |
Recording playback | 8 channel playback simultaneously |
Recording backup | Support USB flash disk, mobile hard disk, network backup |
HDD | Support 1 SATA HDD,capacity to 2T(The Item Doesn't Contain Hard Disk) |
Network transmission | 8 channels real-time network transmission with CIF resolution |
Capture function | Support |
Email alarm | Send pictures to the designated Email box |
PTZ control | Support |
PTZ protocol | PELCO-D,PELCO-P |
PIP | Support |
Zoom | Support |
Network and protocol | 1 RJ-45 10/100M via Ethernet,support TCP/IP,SMTP,DHCP,DNS,DDNS,NTP etc. |
IE browser | Support, max five users online |
Client software | Support, max five users online |
CMS | Support |
Dual stream | Support(main and secondary interchange) |
Multi-language | Support |
Mobile phone surveillance | Support Windows,Symbian,IPhone,Blackberry,Android |
Mouse interface | USB1.1 |
Backup interface | USB2.0 |
Remote controller | Support |
User authority | Support multi-level user authority distribution |
Power | DC12V/3A |
Working temperature | -20 degree to +60 degree |
Working humidity | 10%-90% |

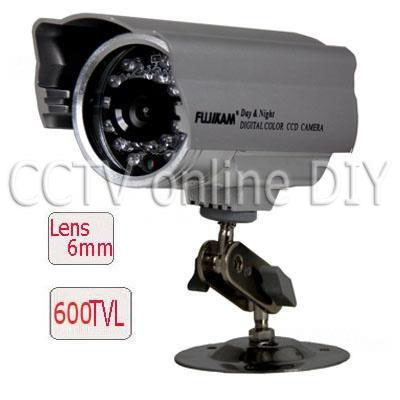

Camera Features
- High resolution:600TVL
- 24PCS Led, 20M Night working distance
- Built in 6mm lens, wide view angle 45°
- Low illumination:0.1Lux(F1.2,AGC ON),0 Lux with IR
- IR-Cut,Automatic color turn Black&white,Day&night working
- AWB Automatic White Balance, image color near true
- Back light compensation,
- High SNR, Image clear & please
- Automatic electronic shutter,adapt different environment
- Automatic Electronic Gain function, Brightness adaptive
- IP66 waterproof design level
Camera Specifications:
- Image sensor: 1/3" DIS ICR
- Signal System: PAL/NTSC
- Effective pixels: 720(l)×480(v)
- Synchronous system: Inter-sync
- Video Output: 1Vp-p Composite Output(75Ω/BNC)
- Horizontal Definition: 600TVL
- Minimum illumination: 0.1Lux @ (F1.2,AGC ON),0 LUX with IR
- Day&night model: ICR infrared filter chip
- SNR: >52 dB
- White Balance: Automatic
- AGC: Automatic
- BLC: Automatic
- Electronic shutter: 1/25(1/30)s - 1/15,000s
- Lens: Built in 6mm lens optional
- Infrared distance:15-20M
- LED: 24PCS
- Led size: Φ5mm
- Protection grade: IP66
- Working enviroment: -40 degree ~60 degree, humidity <90%
- Working Voltage: DC12V+10%
- Power consumption:5W MAX(IRCut,7.5W MAX)

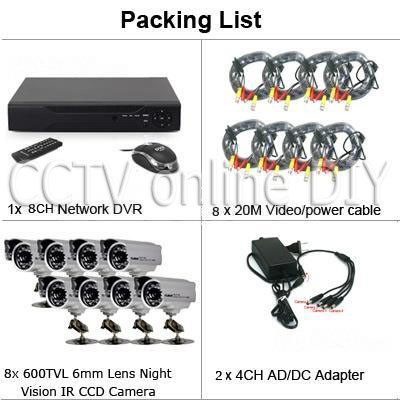

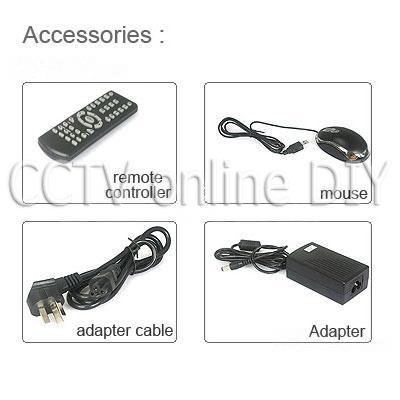

Item Included:
- 1 X 8CH H.264 real time standalone DVR support mobile monitoring
- 1 X USB Mouse
- 1 X Remote Controller
- 1 X Power Adapter
- 1 X Software CD
- 8 X CCTV 600TVL 6mm Lens 24 Leds Night Vision Outdoor IR CCD Camera
- 8 X BNC 20M Power Video Plug and Play Cable for CCTV Camera
- 2 X 4CH AC100-240V to DC12V Power Supply Adapter for CCTV
